LT-Ku06 Low Altitude Warning Radar + LT-UJ830Q Omni-Directional UAV Jammer (Optional)

Product introduction:

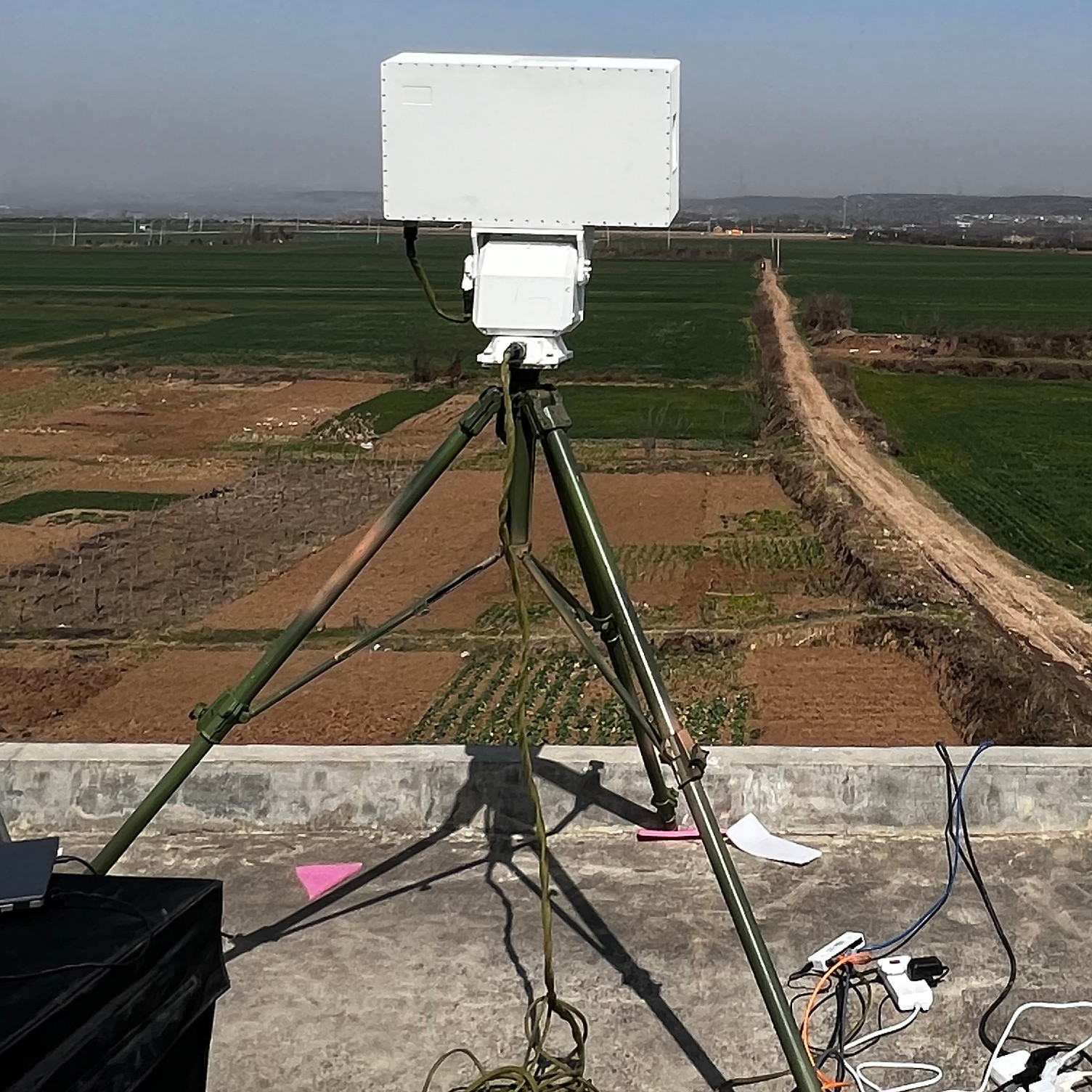

LT-Ku06 radar is a low altitude alert detection equipment, operating in the Ku band. lt uses a wide-angle frequency scanning waveguide antenna with alinear frequency modulation pulse system, and is suitable for applications withfull coverage of a single radar in the airspace. In the pitch dimension.frequency scanning technology is used instead of costly phased scanningtechnology, which is cost-effective.

The omnidirectional multi-band jamming antenna system adopts multiple cylindrical spiral antennas, and its transmission frequency band can almost cover the communication frequency band of UAVs in the market, including 3 flat panel antennas and 1 PCB antenna. It can effectively jam targets within the operating range of the antenna, and the jamming range is determined by the anti-jamming capability of the UAVs. This jammer adopts an omnidirectional jamming system, which can effectively maintain the airspace security of key areas.

Product Features:

1, High sensitivity and stable performance.
2, Strong resistance to anti-active jamming and anti-passive jamming.
3, High resolution and measurement accuracy.
4, Solve the technical bottleneck of some common radars at home andabroad that find it very difficult to discover low, small and slow targets.

5, The jammer adopts omnidirectional jamming system.
6, The pitch transmission section uses a worm gear transmission which is self-locking in the event of a power failure.
7, The internal industrial grade (military grade optional) embedded intelligent control system can realize the stable control of the turntable.
